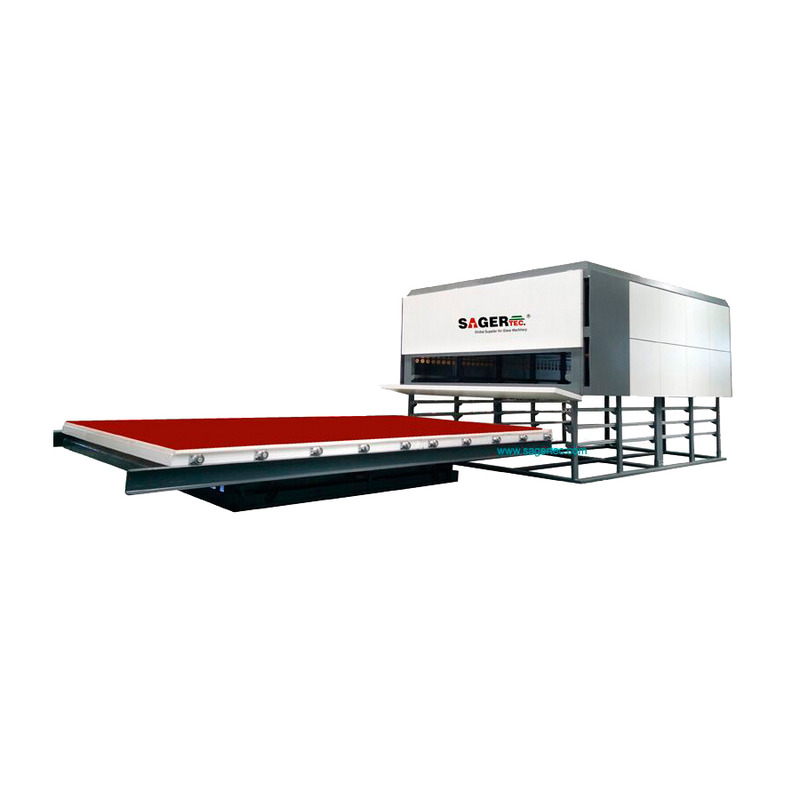

Glass Laminating Machine Glass Laminated Oven
Main description
SG-3000-2DD EVA glass laminating machine is a processing equipment to produce laminated glass without autoclave, it is able to produce various laminated glass thanks to the advantage of this machine and specific film. You can insert silk, paper, plastic film, metal mesh, fabrics, PDLC film, SGP film, TPU film into notmal and tempered glass sheets by using the EVA film, in order to produce decorative and functional laminated glass, bending glass in one step and more steps are available.
Parameter of EVA glass laminating machine
| Model | SG-3000-2DD |
| Max. glass size | 3200*2000mm |
| Max. glass thickness | 50mm |
| Vacuum bag | 2 sets |
| Heating temperature time | 30 minutes |
| Dimension of oven | 4000*2700*2000mm |
Other size is available...we can design on your requirement!
Layout of glass laminating oven
Structure of glass laminating oven
The machine adopt one work- station are available, equal to double working section, which allows the operator to prepare the next working pieces while the one processed in the furnace, so that saves much space and time. Main parts including:
Ø One main oven with heating system
Ø One control carbinet
Ø One set vacuum system with buffer tank
Ø One hydraulic loading table
Ø Two sets vacuum beds
Ø Two sets vacuum bags
Ø 2 sets teflon net
Ø One tool box
Control system:
The control system applies the PLC with touch screen, all the parameters can be easily and directly set through finger touch, the temperature would be refulated by means of changing the value of voltage, so that it can have accurate temperature control, six processing steps for optional.
Vacuum system:
Vacuum pump with buffer tank
Heating system:
Adopt infrared heating, the heating tubes placed in horizontal direction, which means to be parallel with glass sheet. In this case, it can heat glass sheets to the target temperature quickly and uniformly, to save a lot of time and 30% power consumption. Air convection heating system is available.
Other design:
The furnace door would be opened or closed by pneumatic, thick insulating materials, high tear-resis silicone rubber bags, high temperature-resist bear for pulling. CE regulated electronics and wireing, power-strenghten vacuum pump, well know brand electrics...all above basic elements ensure the quality and stability of machine.
Finished EVA laminated glass
Architectural laminated glass: bullet-proof laminated glass, bending glass, low-e laminated glass
Decorative laminated glass: one way transparent laminated glass,conducting laminated glass, switchable laminated glass
Art laminated glass: dry flower laminated etc,such high class laminated glass, silk laminated glass, photo laminated glass, marble paper laminated glass.
Other glass processing machines, please click for your information:
One Layer EVA Glass Laminating Machine SG-3000-1DD
5 Layers EVA Laminated Glass Production Machine SG-3000-5SD
EVA Film For EVA Laminated Glass Processing
Horizontal glass washing machine SZ-W25
Professinal package and loading team to make sure your machines are safety when shipment by sea
CE certification, ISO of glass machines to make sure the quality of machine
Every year our company participate in exhibition at home and abroad and get a lot of opportunites to cooperate with new and old customers, Now our produc has sold in more than 60 countries such as Germany, Belgum, Australia, USA, Turkey, Bahrain,Israel, Paraguay, Argentina, Columbia, Venezuela, Guatemala, Douminican Republic etc.We also have a branch office in Brazil...
We will provide all spare parts needed for maintenance of the equipments.
Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Sagertec. is a professional designer and manufacturer for glass machinery with decade experience. it owns a professional technical team that consist of engineers from both foreign country and domestic; and the dynamic international commercial team is ready to offer the service to you in worldwide.
The main products are including: Automatic PVB Laminating production line (autoclave-free); EVA laminating furnace, tempering glass heat soak furnace, Glass washing machine, Grinding & polishing machines, which have already been exported to Germany, USA. UK, Australia, Brazil etc. where more than 50 different countries and areas.
Sagertec. will always keep on innovation and ensure its quality, the mission is “ providing high quality automation equipment for glass industry in worldwide”
1. which film it can laminate?
EVA, TPU, SGP, PDLC and so on.
2. how about the Max. glass size?
3200*2000mm, size can be customed.
3. do you have more layers design?
Yes, we have 3, 4, 5, 6, 7, 8 layers on your requirement.
4. can it laminate the PVB film?
no, but we have the model can do the PVB film without autoclave, please check PVB glass laminating oven
10-30 minutes/batch, and one day production quantity more than 500Sq.m.
